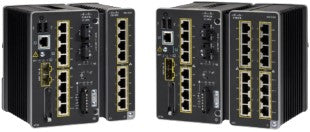

IE-3400-8 Cisco Catalyst IE3400 Rugged Modular Switch
The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.

Manufacturer	Cisco Systems
Manuf Part#	IE-3400-8P2S-A

Product Name	Catalyst IE3400 Rugged Series Advanced Modular PoE
Product Type	Ethernet Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Slots	2
Product Family	Catalyst IE3400
Media Type Supported	Twisted Pair Optical Fiber
Total Number of Network Ports	10
Redundant Power Supply Supported	Yes
Expansion Slot Type	SFP (mini-GBIC)
Form Factor	DIN Rail Mountable
Power Source	Power Supply
Layer Supported	3
Environmentally Friendly	Yes
Environmental Certification	WEEE
Number of SFP Slots	2
Modular	Yes
Uplink Port	Yes
Port / Expansion Slot Details	8 x Gigabit Ethernet PoE+ 2 x Gigabit Ethernet Expansion Slot
Country of Origin	China
Height	6"
Width	4.4"
Depth	5.3"
Product Series	IE3400
Product Model	IE-3400-8P2S-A
Network Technology	10/100/1000Base-T 1000Base-X
Product Line	Catalyst
Limited Warranty	5 Year
