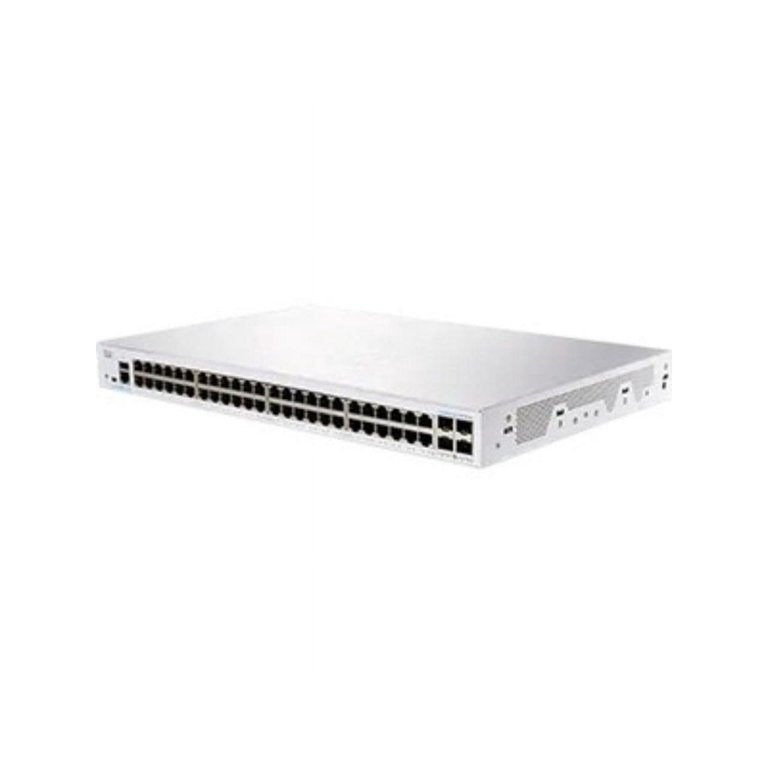

CISCO CBS250-48T-4X - 250 Series Smart Switch

CISCO Business 250 Series CBS250-48T-4X - L3 Smart Switch - 48 Ports - Rack-mountable

Specifications:

• Device Type: Switch - 48 Ports - L3 - Smart
• Enclosure Type: Rack-mountable
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
• Interfaces:
  • 48 x 10/100/1000 Base-T RJ-45
  • 4 x 10GBASE-X SFP+
  • 1 x Console (Mini-USB Type B)
  • 1 x USB Type A
  • 1 x Console RJ-45

Performance:

• Switching Capacity: 176 Gbps
• Forwarding Performance (64-byte packet size): 130.94 Mpps

Capacity:

• RPVST+ Instances: 126
• MSTP Instances: 8
• VLANs Supported: 255
• ACL Rules: 512
• Buffer Capacity: 3 MB
• MAC Address Table Size: 8K Entries
• Jumbo Frame Support: 2 KB

Routing Protocols:

• IGMPv2, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP

Remote Management Protocols:

• SNMP (v1, v2c, v3), RMON, Telnet, HTTP, HTTPS, TFTP, SSH (v2), CLI, SCP, ICMP, DHCP, RADIUS

Power:

• Device: Internal Power Supply
• Voltage Required: AC 120/230 V (50/60 Hz)

Dimensions and Weight:

• Dimensions: 17.5 in x 10.7 in x 1.7 in
• Weight: 8.71 lbs
