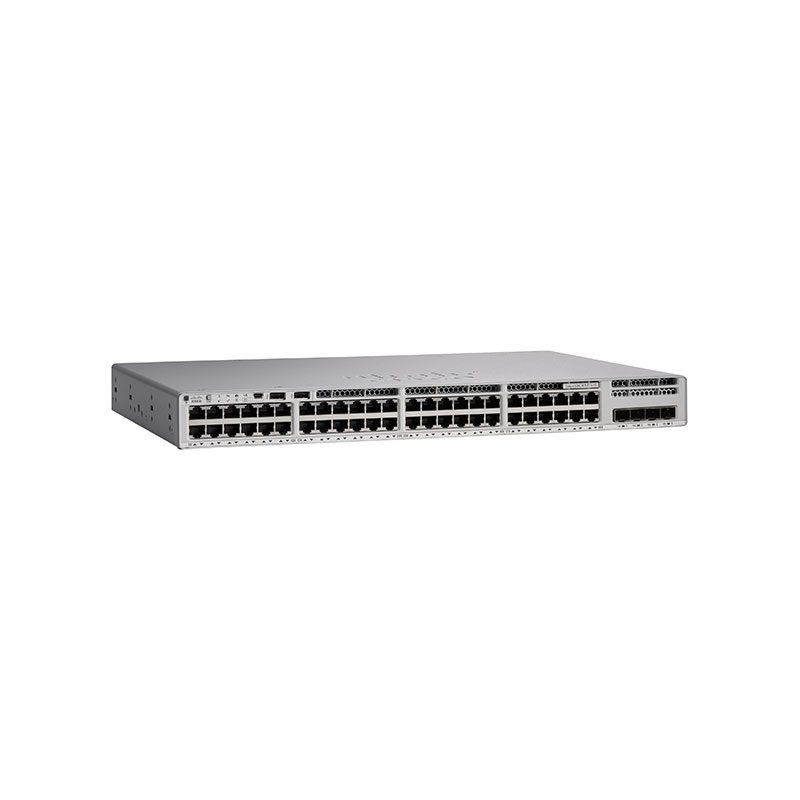

Catalyst 9300L 48p data, W/ 3Yr DNA Advantage License

Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.
Details

Designed to replace           Catalyst 3850

Supported IOS                   Network Advantage, Network Essentials

Network modules options     Fixed Modules

Stack Technology                   StackWise-320

Stacking bandwidth               320 Gbps

Total number of MAC addresses   32,000

Total number of IPv4 routes (ARP plus learned routes)            32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries - IPv6 routing entries 16,000

Multicast routing scale                                8,000

QoS scale entries                                          5,120

ACL scale entries                                          5,120

Packet buffer per SKU           16 MB buffer for 24 and 48 port Gigabit Ethernet models

Flexible NetFlow (FNF) entries 64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM           8 GB

Flash             16 GB

VLAN IDs      4094

Total Switched Virtual Interfaces (SVIs)       1000

Jumbo frames                                                 9198 bytes

Switching capacity                                          56 Gbps - 176 Gbps

Forwarding rate                                              41.66 Mpps - 130.95 Mpps
