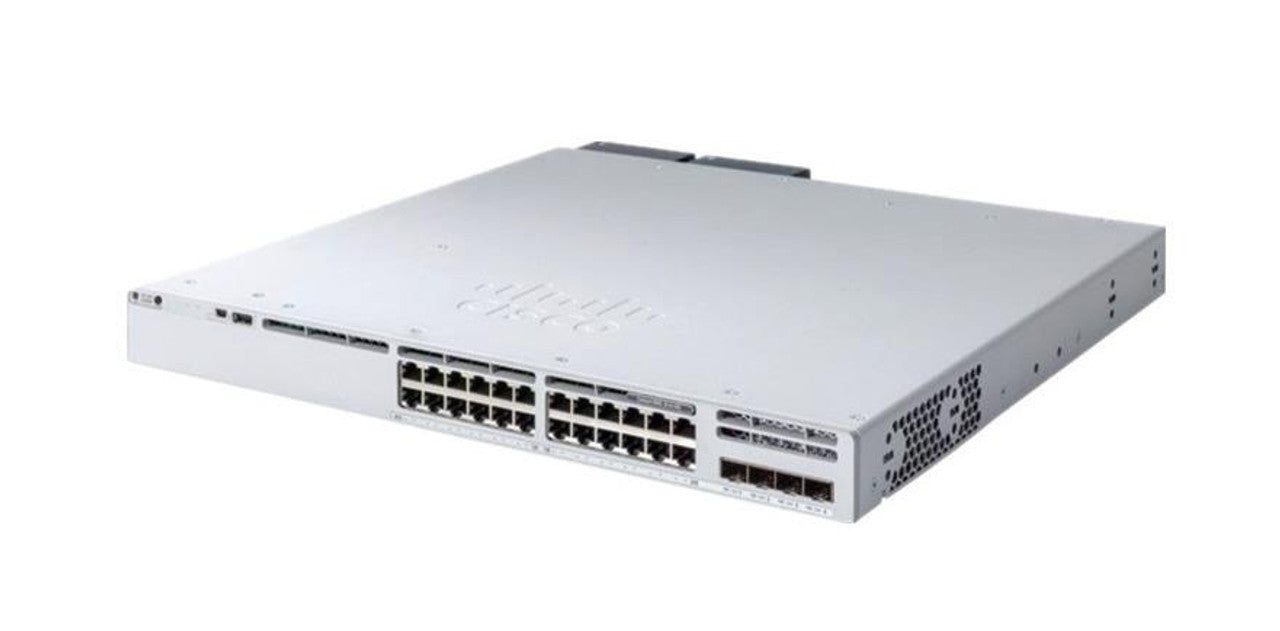

Cisco C9300L-24P-4X-A

Catalyst 9300L 24p PoE

Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.
Details

Designed to replace               Catalyst 3850

Supported IOS                        Network Advantage, Network Essentials

Network modules options     Fixed Modules

Stack Technology                    StackWise-320

Stacking bandwidth                320 Gbps

Total number of MAC addresses       32,000

Total number of IPv4 routes (ARP plus learned routes)      32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries - IPv6 routing entries  16,000

Multicast routing scale                     8,000

QoS scale entries                               5,120

ACL scale entries                                5,120

Packet buffer per SKU            16 MB buffer for 24 and 48 port Gigabit Ethernet models

Flexible NetFlow (FNF) entries    64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM               8 GB

Flash                 16 GB

VLAN IDs          4094

Total Switched Virtual Interfaces (SVIs)     1000

Jumbo frames     9198 bytes

Switching capacity    56 Gbps - 176 Gbps

Forwarding rate          41.66 Mpps - 130.95 Mpps
